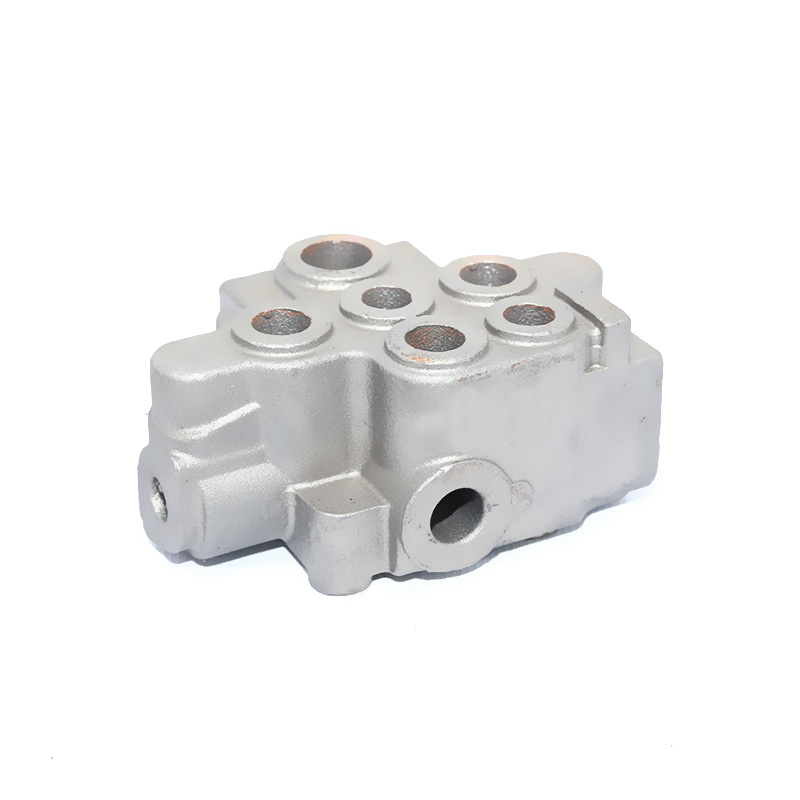

Application of hydraulic valve manifolds

Jun 21,2024

In the present situation, according to different situations and different uses of hydraulic valves, hydraulic valves can be divided into many types, this article focuses on one of them, this hydraulic valve manifold consists of four parts, which is composed of cartridge, control cover, pilot control valve and integrated block of the two-way cartridge valve.
The main contents and functional uses of these four parts are described below. The structure of the cartridge can be regarded as a slide valve or cone valve, the role of this part of the constituent elements is very important, can be very good control of the channel or other places of the flow direction of the fluid, flow speed and pressure and so on. Control cover can effectively control the cartridge valve real-time working conditions, mainly because it is composed of a lot of pilot control components, these components can regulate or control the cartridge valve working conditions, the control cover is basically even a bridge, connecting the control valve and components, and, pilot control valves should be selected to be installed on it. Two way cartridge valve on the current situation in our country, is more common, from the economic aspect, because of its components and the necessary connection of some piping is relatively small, easy to integrate, so it is very convenient, suitable for large-scale mass production, which can largely reduce the cost of production. From the point of view of the use of considerations, its structure determines its volume will be very small so it is very convenient, its control of the switching speed is very high so it determines the use of the efficiency is very high and reliable. In addition, it can also be controlled by a large power, which has the advantage that the loss of pressure will be reduced, and the loss of heat will also be reduced. Finally, 2-way cartridge valves are not affected by commutation. The main role of the two-way cartridge valve is to connect the route of the fluid or control it to disconnect.
